The drive to modernise South African municipal sanitation infrastructure has historically gravitated towards complex, highly mechanised wastewater treatment technologies. On the ground, experience tells us a different story: Engineering excellence is measured not by mechanical sophistication, but by operational resilience within its socio-economic context.

In the Northern Cape’s Magareng Local Municipality, this paradigm shift is transitioning from theory into execution. BVi Consulting Engineers is advancing the conceptual design and implementation framework for the relocation of the Magareng wastewater treatment works (WWTW) in Warrenton, featuring a deliberate, engineered return to oxidation ponds integrated with an artificial constructed wetland polishing stage.

Not a single Northern Cape municipality achieved the ≥90% minimum for Green Drop Certification. The Dawid Kruiper Local Municipality leads the province with just 68%, a score that would be classed as average performance nationally. Fourteen of twenty-six water service authorities (WSAs) regressed from their 2021 baselines.

• National: 396 systems in critical state or disqualified (was 334 in 2021)
• National: 14 Greendrop certifications awarded, down from 22 in 2021
• Northern Cape: 0 certifications for the 3rd consecutive audit cycle
• Northern Cape: 65 / 75 systems in critical state (31%), up from 59 in 2021
• Northern Cape: A 81.1% cumulative risk rating (CRR), persistently high risk (89.7% in 2021)
• Northern Cape: A 40% technical site assessment average upon physical inspection

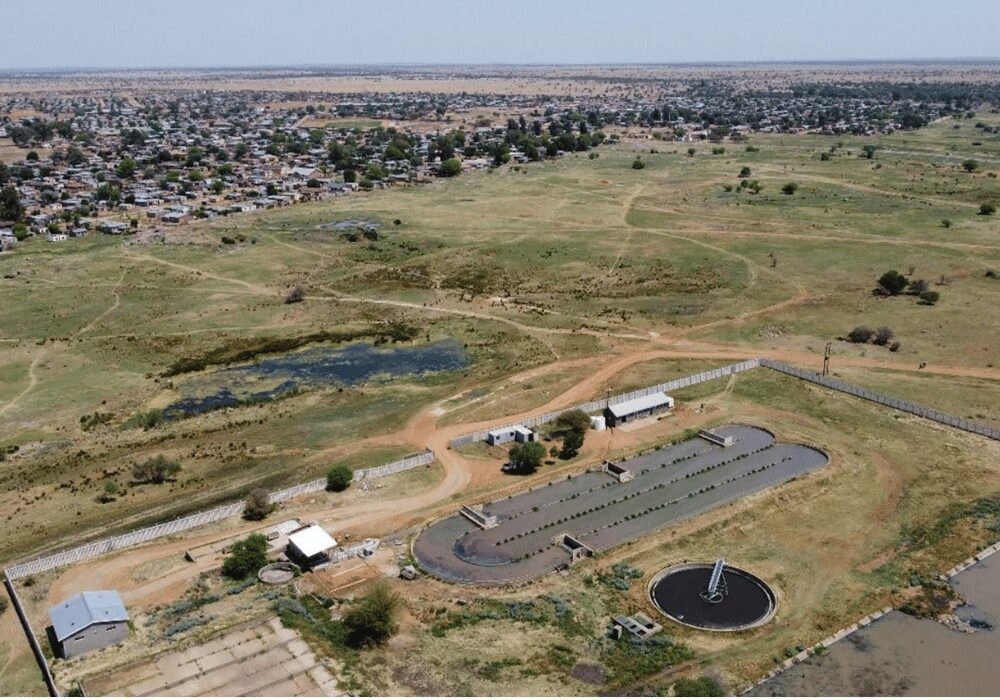

The image comes together more clearly in the case study of the Warrenton WWTW

2024 Green Drop score: 6.2% (5% in 2021, 34% in 2013)

• Critical risk rating: 88.2% unchanged 2022–2023–2024
• Environmental management key performance area: 0.0%
• Technical key performance area: 4.5%
• Effluent compliance: 0 % Microbiological · Chemical · Physical
• Discharge: zero treatment compliance for Vaal River discharge

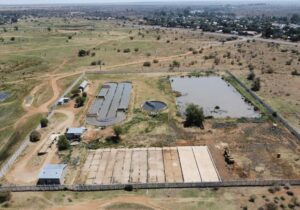

The Green Drop inspector also confirmed that of the four Pasveer Ditch aerators, only one was fully operational. Two had failed motors; one had a broken V-belt. The clarifier scum draw-off was non-functional, the outflow meter was broken, and the inflow appeared blackish-septic. No sludge age, mixed liquor suspended solids, or recycle ratios were monitored. This is not an isolated incident; it is the predictable endpoint of deploying a mechanically intensive, energy-dependent process into a context that cannot sustain it.

Why advanced packages fail in rural contexts

The Green Drop report is unambiguous about root causes: not simply underfunding, but governance failures, mechanical maintenance collapse, severe shortages of qualified process controllers, and unsustainable electricity costs. In rural areas, three structural vulnerabilities make advanced treatment systems a predictable mismatch:

• Energy insecurity: Continuous high-kilowatt aeration cycles are incompatible with load-shedding and grid instability.
• Skills gap: Optimal sludge age management, return activated sludge/waste activated sludge rate control, and dissolved oxygen sensor calibration require specialist process engineers that smaller municipalities cannot recruit or retain.
• Supply chain: Aeration turbines, dissolved oxygen probes, and chlorination systems face months-long procurement lead times in remote areas, leading to direct bypasses and raw sewage discharge.

True engineering excellence matches process configurations to available resources. In rural South Africa, two resources are abundant: land and solar radiation. Reed beds and constructed wetlands have proven to be a viable, low-technology solution requiring minimal energy, manpower, and chemical inputs, exactly the profile that struggling municipalities need.

The preliminary design confirms that the approved oxidation pond and horizontal flow reed bed process can be practically implemented for the relocated Warrenton WWTW.
Oxidation ponds rely on solar radiation and algal photosynthesis, not electrical aerators, making them inherently load-shedding-proof. Even in a partial-failure scenario, passive pond systems continue to deliver a measurable level of treatment, unlike mechanical systems that cease to function entirely when power or components fail. The constructed wetland polishing stage uses sub-surface gravel and aquatic macrophytes to strip nutrients, COD, and pathogens through root-zone nitrification-denitrification, without electrical inputs.

The nature-based track record

BVi successfully implemented these plants across the Northern Cape:

• Hantam Local Municipality (Calvinia): 2.4 Mℓ/d reed bed treatment facility, proven municipal compliance with minimal mechanical overhead.
• KWV and Orange River Cellars: Pilot 1.5 m³/d reed bed plant for winery/distillery effluent, validating passive treatment of complex industrial loads.
• SAN Parks, Nossob: passive reed bed WWTW for domestic wastewater in a remote eco-tourism reserve, zero grid dependency.

The complexity of Warrenton’s existing sanitation situation illustrates exactly why operational collapse was inevitable. The town is served by four completely different sanitation systems operating simultaneously:

1. the central business district relies on conservancy and septic tanks emptied by vacuum tankers
2. Ikhutseng and Warrenvale have waterborne reticulation with gravity mains and pump stations
3. the new station area uses a vacuum sewer
4. the southern areas of Rabatjie, Ditshotshwaneng, and Sonderwater have no waterborne sanitation at all

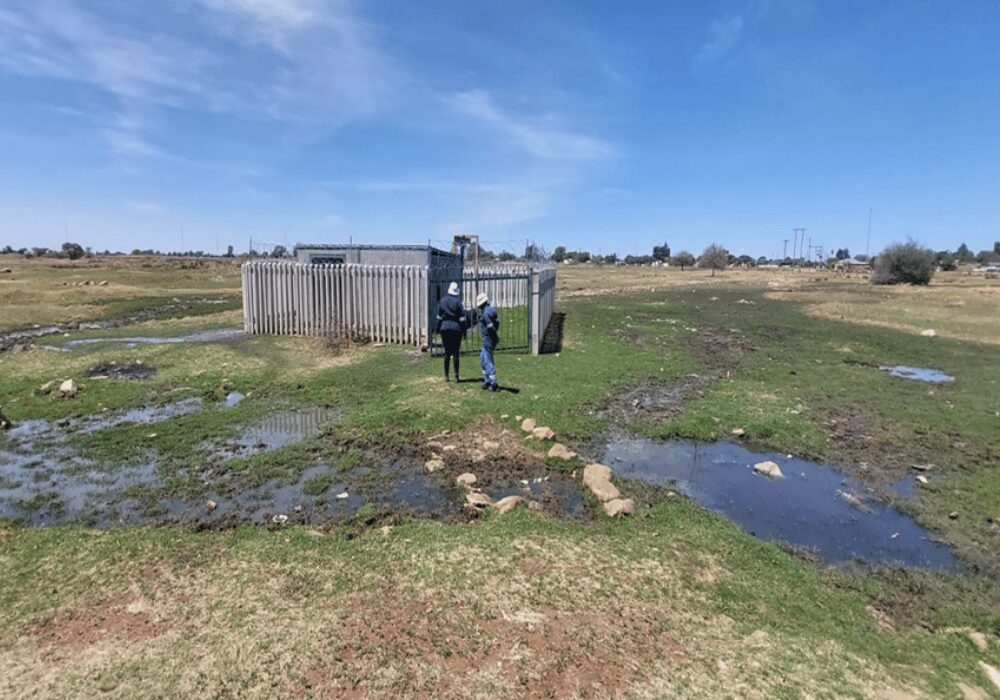

BVi’s master plan completely resolves this fragmented reality. The entire network is redesigned as a single seamless waterborne system, converting all septic tanks, conservancy tanks, and vacuum sewers into conventional gravity reticulation. Through topographic and hydraulic analysis, bulk outfalls are re-routed to exploit natural terrain gradients, eliminating the N12 and Ikhutseng Main pump stations entirely. The full municipal pumping burden is reduced to a single lift node, ending raw sewage from reaching the Vaal River.

A wider opportunity: the Northern Cape and beyond

BVi recognises that municipal operational failure is not unique to Warrenton. Across the Northern Cape and other provinces, the same pattern repeats: advanced mechanical systems are installed, skills and power supply cannot sustain them, and the receiving environment suffers the consequences.

Where land is available, and in the Northern Cape it invariably is, oxidation pond and reed bed systems must be further investigated as the standard of choice for small and medium municipalities. These systems deliver a general limit effluent quality that is accepted by the Department of Water and Sanitation (DWS), without the operational complexity that continues to overwhelm local government capacity.

BVi has made a conscious engineering shift: from specifying advanced treatment processes that look impressive on paper to designing general limit treatment solutions that municipalities can realistically operate, maintain, and sustain. That shift, from ambition to achievability, is what will protect South Africa’s water resources for the next generation.

BVi understands that municipalities are failing on operations, and has responded with a deliberate, responsible engineering shift. By moving from advanced mechanical processes to nature-based general limit treatment systems accepted by DWS, BVi is delivering infrastructure that municipalities can actually operate. Where land is available, as it is across the Northern Cape and many rural provinces, these plants are not a compromise. They are the right answer. The Warrenton relocation project is proof of that commitment.
